Description

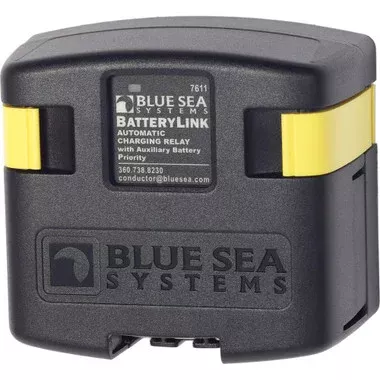

7611 DC BatteryLink™ Automatic Charging Relay – 120 Amp w/Auxiliary Battery Charging
Features:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8″ (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4″ x .032″ male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
- Continuous Amperage: 120a
- Box Dimensions: 4″H x 7″W x 9″L WT: 1.25 lbs
- UPC: 632085076115
Owner’s Manual (pdf)View AllClose
