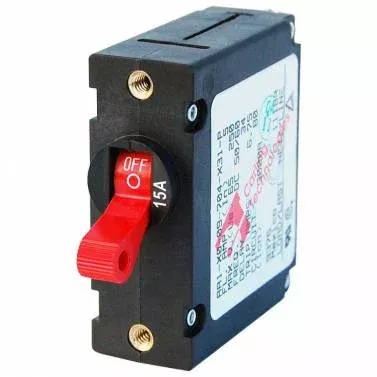

Blue Sea 7209 A-Series Red Toggle Circuit Breaker Single Pole 15A

Blue Sea 7209 A-Series Red Toggle Circuit Breaker Single Pole 15A

Original price was: $5.62.Current price is: $3.40.

95 in stock

SKU: GUOPX307809 Category:

Description

New Blue Sea Systems A-Series Red Toggle Circuit Breaker – Single Pole 15A. Part number 7209.

Features

  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems’ electrical panels
  • Combines swtiching and circuit protection into a single device
  • “Trip Free” design cannot be held “ON” during fault current condition

Specifications

  • Amperage: 15A AC, 15A DC
  • Color: Red
  • Actuator Style: Toggle
  • Poles: 1
  • Maximum Voltage: 250V AC, 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic – trip free
  • Interrupt Capacity: 3000A @ 120V AC, 1500A @ 250V AC [TUV], 3000A @ 250V AC [UL 1077], 7500A @ 65V DC
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Mounting Screw: 6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: 10-32 Stainless Steel
  • Weight: 0.17lb (0.08 kg)
