Sale!

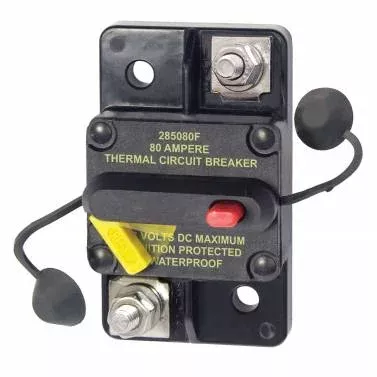

Blue Sea 7186 Circuit Breaker 285-Series 80A Surface Mount Marine

Blue Sea 7186 Circuit Breaker 285-Series 80A Surface Mount Marine

Original price was: $12.82.Current price is: $8.62.

95 in stock

SKU: ZWJAB554346 Category:

Description

New Blue Sea Systems 285-series circuit breaker 80 amperes DC. Part number 7186. Provides circuit protection and switching.

Features

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected – Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • “Trip Free” – cannot be held closed after trip

Specifications

  • Amperage: 80A
  • Maximum Voltage: 48V DC
  • Mounting: Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A @ 48V
  • Minimum Operating Temperature: -40 degree C
  • Maximum Operating Temperature: 85 degree C
  • Circuit Breaker Class: Type III – switchable/manual reset – trip free
  • Terminal Stud: M6 (accepts 1/4″ Ring Terminal)
  • Weight: 0.50lb (0.23 kg)
