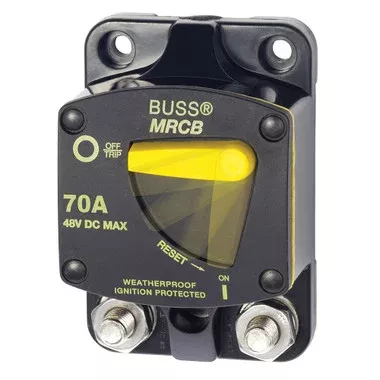

Blue Sea 7141187 – Series Thermal Circuit Breaker–70Amp [7141]

Blue Sea 7141187 – Series Thermal Circuit Breaker–70Amp [7141]

Original price was: $23.28.Current price is: $16.90.

34 in stock

SKU: ZWJAB534487 Category:

Description

187 – Series Thermal Circuit Breakers – Surface Mount

70 Amp Circuit Breaker

PN:7141

Features:

  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected – safe for installation aboard gasoline powered boats
Specifications
Circuit Breaker Class: Type III – Switchable / Manual Reset – Trip Free
Type: Thermally Responsive Bi-Metal Blade
Case Material: Thermoset Polyester
Voltage Rating: 48 Volts DC Maximum
Interrupt Rating: 5,000 Amperes @12 Volts DC
3,000 Amperes @24 Volts DC
1,500 Amperes @42 Volts DC
Operating Temperature Range: -25C° to +82C°

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:

  • Amperage: 70a
  • Box Dimensions: 3″H x 5″W x 8″L WT: 0.6 lbs
  • UPC: 632085071417
