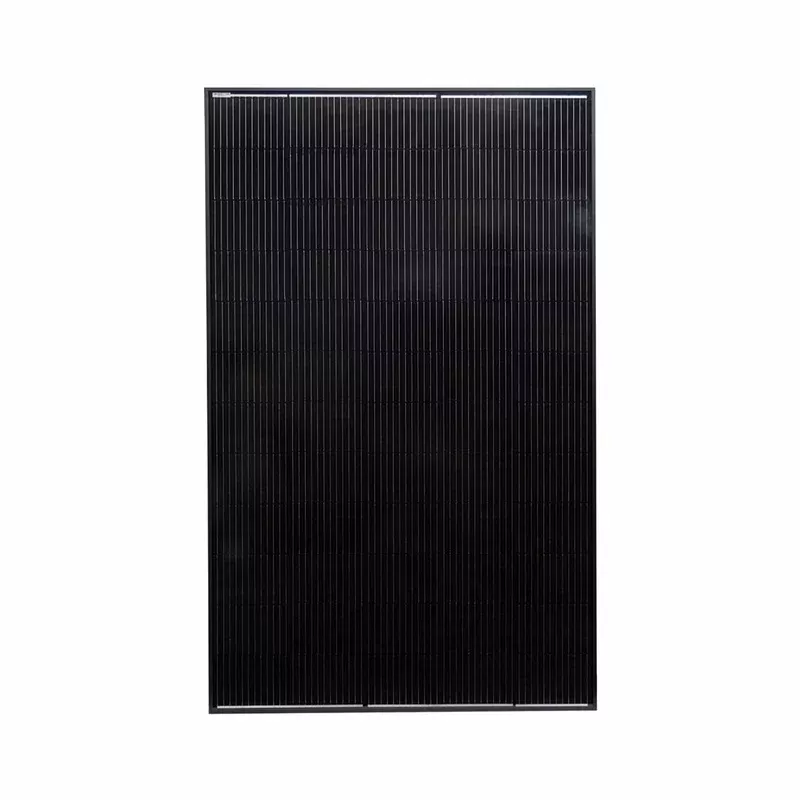

Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B)

Description

Elevate your energy independence without sacrificing your vehicle’s style. The Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B) fromNomadic Supply Company® is a high-capacity, 24V powerhouse designed for large-scale off-grid systems. By combining a massive 375W output with a sleek, all-black design, our Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B) offers a seamless, premium look on any rooftop while delivering the highest efficiency in its class.Built with 60 premium monocrystalline cells, our Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B) hits up to 23% module efficiency. Because of this high energy density, you can reach your power goals with fewer panels, simplifying your rack setup and reducing installation time.

Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B) Features:

• Sleek Blackout Aesthetic: The all-black frame and cell design provide a clean, modern appearance that blends perfectly with custom builds and dark rooftops.
• High-Voltage Efficiency: Optimized for 24V systems, providing high-wattage delivery that reduces the number of components needed for large arrays.
• Advanced Shadow Management: Integrated anti-shading technology ensures that partial obstructions—like AC units or antennas—won’t tank your entire system’s performance.
• Industrial-Grade Durability: Engineered to survive the harshest environments with salt mist resistance and ratings for 5400 Pa snow loads and 2400 Pa wind loads.
• Maximum Light Transmission: Features high-transparency tempered glass and a rigid anodized aluminum frame for long-term structural integrity.

Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B) Specifications:

• Maximum Power (Pmax): 375W
• Voltage at Pmax (Vmp): 34.4V
• Current at Pmax (Imp): 10.91A
• Open-Circuit Voltage (Voc): 40.6V
• Short-Circuit Current (Isc): 11.55A
• Temperature Coefficient of Voc: -(80±10)mV/°C
• Temperature Coefficient of Isc: (0.065±0.015)%/°C
• Temperature Coefficient of Power: -(0.5±0.05)%/°C
• NOCT (Air 20°C; Sun 0.8kW/m² Wind 1m/s): 47±2°C
  • *NOCT: Nominal operating cell temperature (the data is only for reference)
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Maximum System Voltage: 1000V DC
• Power Tolerance: ± 5%
• Cells: Monocrystalline Silicon Solar Cell
• Number of Cells & Connections: 60 (5 x 12)
• Module Dimension: 68.90” x 42.99” x 1.38”
• Weight: 44.60 lbs.
• Packing Information (Carton): 70.67” x 44.76“ x 2.76”

Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B) Documents:

Battle Born Elite Blackout 375 Watt 24V Monocrystalline Solar Panel (BBPV-24-375B Data Sheet)
