Description

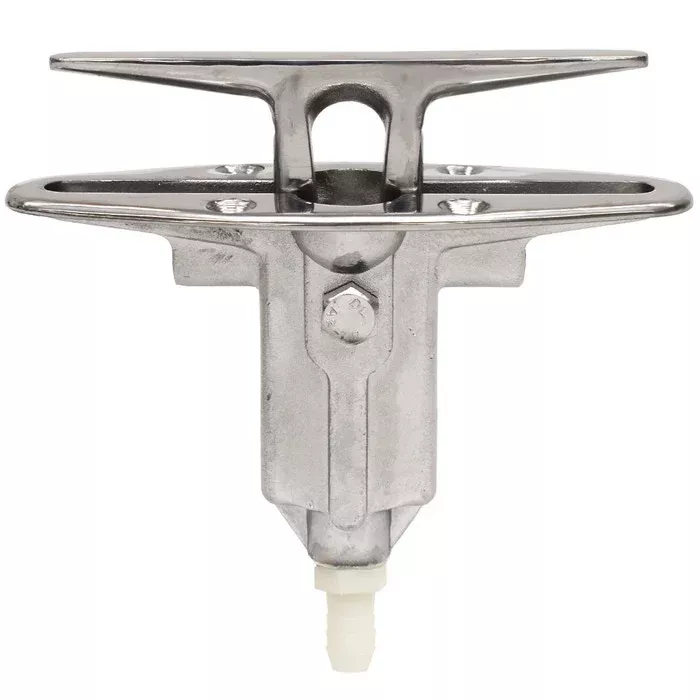

Boat part number 7410346 is a new pull-up cleat from Accon Marine. Commonly used on Scout boats, but may be used on other boats.
This pull-up cleat is constructed out of 316 stainless steel and features a sealed base that water can drain out of the fitting on the bottom. Mounts with (4) 1/4″ Dia. countersunk holes set apart in a 1 1/2″ x 2 1/4″ pattern, measured center-to-center.
Measurements:
- Overall Height: 6 1/2″
- Closed Height: 5″
- Overall Width: 6 7/8″
- Cleat Width: 5 7/8″
- Clearance: 1″
- Fitting: 1/2″ Dia. Barbed
- Backing Plate: 7″ L x 2 3/8″ W
Specifications:
- Boat Manufacturer: Scout Boats
- Part Number: Unavailable
- Part Manufacturer: Accon Marine
- Part Number: Unavailable
- Material: 316 Stainless Steel
- Color: Silver
- Finish: Polished
- Overall Dimensions: 6 1/2″ H x 6 7/8″ W
- Mounts: (4) 1/4″ Dia. Holes
- Connections: 1/2″ Dia. Barbed
